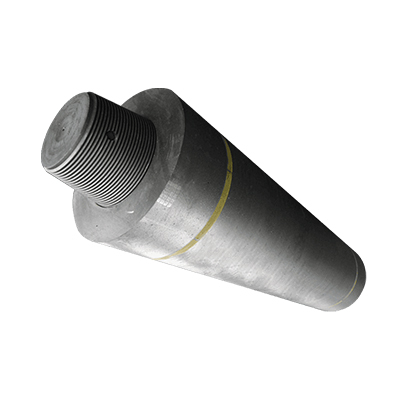

RP Graphite Electrode

Graphite electrode is a kind of high temperature resistant graphite conductive material which mainly uses petroleum coke and needle coke as raw materials and coal pitch as binder.Graphite has high thermal conductivity and is very resistant to heat and impact.
Availability:
  • RP

HAIHAN Company Main Produce: RP Graphite Electrode

                                                                                                            (Please contact us Get Free Quote Now. )



 Physical Properties


Regular power graphite electrode (RP): Mainly used in ordinary power electric furnaces for steelmaking, silicon making, yellow phosphorus making, etc. It contains 100% petroleum coke and allows current density to be lower than 17A/cm⊃2;.

le current density is 18-25A/cm⊃2;.

ITEM RP HP UHP
 (YB/T 4088-2015) (YB/T4089-2015) (YB/T4090-2015)
75-300 350-450 500-700 200-400 450-500 550-700 300-500 550-700
Electrical Resistance Electrode 9 9 9 7 7.5 7.5 6.2 5.8
(Max.) μΩ-m Nipple 8 8 8 6.3 6.3 6.3 5.3 4.3
Flexural Strength Electrode 10 8 6.5 10.5 10.5 8.5 10.5 10
 (Min.) Mpa Nipple 15 15 15 17 17 17 20 23
Elastic Modulus (Max.) Gpa Electrode 9.3 9.3 9.3 14 14 14 14 14
Nipple 14 14 14 16 16 16 20 22
Bulk Density Electrode 2.9 2.9 2.9 1.6 1.6 1.6 1.67 1.68
(Min.) g/cm3 Nipple 2.7 2.8 2.8 1.72 1.72 1.72 1.75 1.78
C.T.E(Max.)×10-6/°C Electrode 1.58 1.53 1.52 2.4 2.4 2.4 1.5 1.5
Nipple 1.7 1.7 1.7 2.2 2.2 2.2 1.4 1.3
 Ash(Max.) % Electrode 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5


REMARK: the above data is just on standard of YB/T, the actual product is big different from the above. For the actual, be free to contact us, please.


 Current Carrying Capacity


Nominal diameter Regular Power High Power Ultra High Power
mm inch Current carrying capacity (A) Current density (A/cm2) Current carrying capacity(A) Current density (A/cm2) Current carrying capacity(A) Current density  (A/cm2)
75 3 1000-1400 22-31



100 4 1500-2400 19-30



130 5 2200-3400 17-26



150 6 3000-4500 16-25



200 8 5000-6900 15-21 5500-9000 18-25

225 9 6000-8000 14-20 6500-10000 18-25

250 10 7000-10000 14-20 8000-13000 18-25

300 12 10000-13000 14-18 13000-17400 17-24 15000-22000 20-30
350 14 13500-18000 14-18 17400-24000 17-24 20000-30000 20-30
400 16 18000-23500 14-18 21000-31000 16-24 25000-40000 19-30
450 18 22000-27000 13-17 25000-40000 15-24 32000-45000 19-27
500 20 25000-32000 13-16 30000-48000 15-24 38000-55000 18-27
550 22 28000-34000 12月14日 34000-53000 14-22 45000-65000 18-27
600 24 30000-36000 11月13日 38000-58000 13-21 50000-75000 18-26
650 26 32000-39000 10月12日 41000-65000 12月20日 60000-85000 18-25
700 28 34000-42000 9月11日 45000-72000 12月19日 70000-120000 18-30

 Product Description


RP Graphite Electrode-Product Description

RP Graphite Electrode-Product Description-2

RP Graphite Electrode-Product Description-3

RP Graphite Electrode-Product Description-4


 Main Applications


Main Applications


Graphite Electrodes are used in Electric Arc Furnaces, Refining Furnaces, Submerged Electric Furnaces, and resistance furnaces, they are presently the only products available that have high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in EAF.


Electric Arc Furnace

Electric Arc Furnace

Refining Furnace

Refining Furnace

Refining Furnace

Submerged Arc Furnace


 Other Products


Haihan Industry Inc.produced UHP Graphite Electrodes，HP Graphite Electrodes，RP Graphite Electrodes，Graphite Blocks，Nipple，Small Graphite Electrode.


UHP Graphite Electrodes

HP Graphite Electrodes

RP Graphite Electrodes


Graphite Blocks

Nipple

Small Graphite Electrode

 Production Process


As a leanding manufacturer of Graphite Electrodes in China, HAIHAN holds complete productionlines, from the Petro Coke calclining to the Machining, therein, Ring Pit Baking Furnaces, High Pressure Impregnation Vessels, DC Graphitization Furnaces, Lengthwise Graphiteization Fruances, and Numerical Contro Lathe Machining Line, etc. all reach international advance level.


Forming


Baking

Impregnation


Graphitizing

Machining


 Storage & Transportation


What matters should be paid attention to in the storage of graphite electrodes in steel mills?

1. Place the graphite electrode on a wooden or iron frame.

2. Do not unpack the unused electrodes.

3. The damp electrode should be dried before use.


Graphite Electrodes warehouse


Warehouse

Warehouse-1


Truck transportation of graphite electrodes

Railway freight transport

 Quality Inspection


“Quality Oriented, Credit Supremacy” is always our  business principle, we obtained ISO9001 Certification for Quality Management System, ISO14001 Certificateion for Enviroment Management System and OSHAS 18001 Certification for the Health and Safety System, with our own perfect technology development and advanced quality inspection system, the quality of our products have reached international standard, and we have 20-30 years experienced technical personnel for our all-around pre-sales, mid-sales and after-sales service.


For the performance of the finished electrode: check the product accuracy, weight, length, diameter, bulk density, resistivity, pre-installation accuracy, etc.


For the appearance inspection of graphite electrodes: no black skin, no cracks, and no honeycomb on the electrode surface,draw the safety line at the bottom of the hole.



ISO9001 certification

GB/T 19001-2016 / ISO 9001:2015

GB/T 24001-2016 / ISO 14001:2015

CERTIFICATE OF ENTERPRISE CREDIT GRADE


 Company Profile



Factory

Factory-1

Factory-2


Haihan Industry Inc. is located at Zibo City, Shandong Province, facing Qingdao Port in the east, and Jinan City in the west. Jiao-Ji Railway, Ji-Qing Expressway and No.309 National Highway all run through the place. We enjoy a superior geographical position, and convenient transportation.


Our company holds advanced manufacturing equipments, therein, Ring Pit Baking Furnaces, High Pressure Impregnation Vessels, DC Graphitization Furnaces, Lengthwise Graphitization Furnaces and Numerical Control Lathe Machining Line, etc all reached international advanced level. And, we have gradually perfected the research and development on technology and the quality testing equipments, and established quality control system for all over the production line. The products quality has been reached the International standard; company's holistic manufacturing technology ability has been reached an International advanced level.


 Customer Visit



Visit Haihan Graphite Electrode Factory

Visit Haihan graphite electrode factory

Ukraine customer inspection visit in August 2018


Haihan and Oman customers in October 2019

Group photo of Haihan and UHP600mm graphite electrode customers

Discuss orders with customers in 2019

 FAQ


Q1.When can I get the price?

We usually quote within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you

can call us directly.


Q2.What about the lead time for product?

For graphite product, the lead time is about 15-20 working days.


Q3.What is your terms of delivery?

We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.


 Q4.The sample?

 We can offer some samples, but you need pay the cost and freight.


 Q5.The drawing?

 Our company can almost produce all the product from the customer’s drawing.
