Bridge expansion joints are crucial components of bridge structures that allow for the movement, contraction, and expansion of bridge segments. These joints play a vital role in maintaining the structural integrity of the bridge, ensuring passenger safety, and protecting the bridge from environmental factors. The selection of appropriate materials for bridge expansion joints is essential to ensure their durability, performance, and longevity. In this comprehensive guide, we'll explore the materials commonly used for bridge expansion joints and their key properties.
Bridge expansion joints serve several critical functions:
1. Accommodating Movement: Bridges expand and contract due to temperature fluctuations and other factors. Expansion joints allow for controlled movement, preventing structural damage.
2. Reducing Impact on Superstructure: They absorb and distribute the forces generated by vehicle loads, reducing the stress on the bridge superstructure.
3. Preventing Water Intrusion: Expansion joints act as a barrier to prevent the intrusion of water, debris, and chemicals, which can corrode bridge components.
4. Ensuring Passenger Comfort: Smoother transitions at joints enhance ride quality and passenger safety.
Several materials are used for manufacturing bridge expansion joints, each with its unique properties and advantages:
- Properties: Neoprene is a synthetic rubber known for its excellent resistance to weathering, ozone, and UV exposure. It is highly flexible and durable.
- Advantages: Neoprene expansion joints are cost-effective, easy to install, and provide effective water sealing. They can accommodate significant movement and are suitable for various bridge types.
- Properties: Silicone-based expansion joints offer exceptional resistance to temperature extremes, UV radiation, and chemicals. They are highly elastic and durable.
- Advantages: Silicone expansion joints are ideal for bridges in regions with extreme temperature variations. They maintain their flexibility and sealing properties over a wide temperature range.
- Properties: Polyurethane expansion joints are known for their high tensile strength, abrasion resistance, and durability. They can withstand heavy traffic loads.
- Advantages: Polyurethane joints are suitable for bridges with high traffic volumes. They offer excellent wear resistance and are low-maintenance.
- Properties: Rubber and elastomeric bearings are made from various rubber compounds. They provide flexibility and load-bearing capabilities.
- Advantages: These bearings are used to support and accommodate movement in bridge structures. They are durable and capable of withstanding significant loads.
- Properties: Steel expansion joints consist of steel plates or beams connected with fasteners. They are often used in combination with other materials, such as neoprene.
- Advantages: Steel expansion joints provide structural support and accommodate movement while distributing loads effectively. They are suitable for heavy-duty applications.
- Properties: FRP materials, such as carbon fiber and glass fiber composites, offer high strength-to-weight ratios and excellent corrosion resistance.
- Advantages: FRP components are lightweight, corrosion-resistant, and durable. They are increasingly used in modern bridge construction for their long-term performance.
The selection of the most appropriate material for bridge expansion joints depends on various factors:
Different bridge types, such as highway, railway, pedestrian, or cable-stayed bridges, have unique design requirements. The choice of material should align with the specific needs of the bridge type.
The expected traffic load, including the volume and weight of vehicles, plays a significant role in material selection. Heavy traffic requires more robust materials to withstand the load.
Environmental factors, including temperature fluctuations, exposure to UV radiation, and moisture levels, influence material durability. Materials should be selected to withstand local climate conditions.
Project budgets may dictate the choice of materials. While some materials may offer superior performance, cost-effective options can still provide adequate durability.
Consider the maintenance requirements of the selected material. Low-maintenance materials may be preferred to reduce long-term upkeep costs.
The expected service life of the bridge expansion joint is a critical consideration. Long-lasting materials may be preferred for bridges with extended lifespans.
Proper maintenance and regular inspection of bridge expansion joints are essential to ensure their continued functionality and safety. Maintenance activities may include cleaning, lubrication, and the replacement of damaged or worn components. Routine inspections help identify issues early and allow for timely repairs or replacements, preventing more extensive damage to the bridge structure.
The selection of materials for bridge expansion joints is a critical aspect of bridge design and construction. The choice of material should align with the specific requirements of the bridge type, traffic load, environmental conditions, budget constraints, maintenance needs, and expected longevity. By carefully considering these factors and implementing proper maintenance practices, engineers and bridge professionals can ensure the safety, durability, and long-term performance of bridge expansion joints, contributing to the overall integrity of the bridge structure.

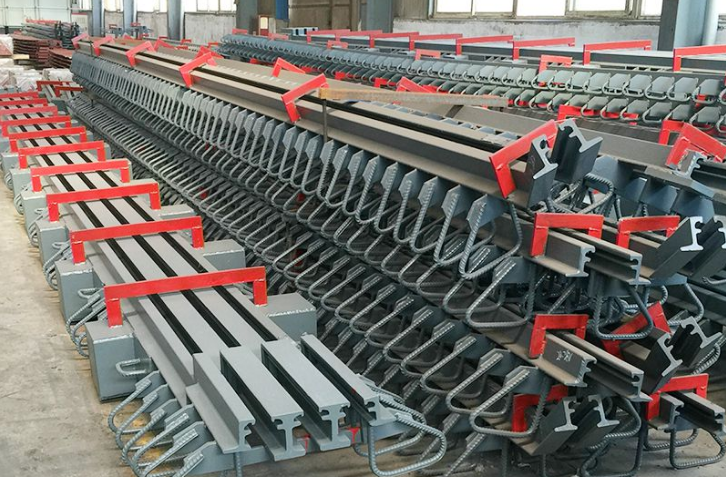

If you want to know more information about bridge expansion joints, please click on the image below to get a free quote:
